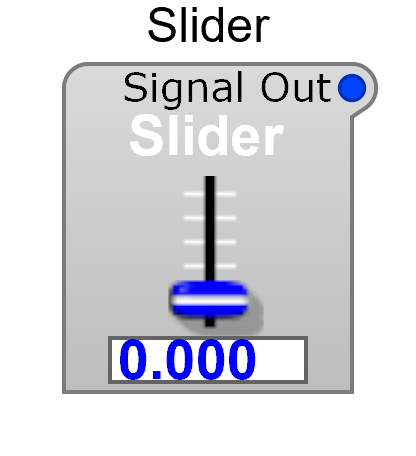

Slider
The Slider provides a draggable control for setting a voltage value directly. It can be configured for different visual appearances and can send MIDI controller messages.
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Signal Out | Audio | Control voltage output |
Parameters
Section titled “Parameters”| Property | Description |
|---|---|
| MIDI Controller ID | Assign a MIDI CC number for external control |
| Ignore Program Change | Prevent preset changes from affecting this slider |
| MIDI NRPN | Use NRPN instead of standard CC |
| Lo Value | Minimum output voltage |
| Hi Value | Maximum output voltage |
| Appearance | Visual style |
| Show Readout | Display the current value |
| Show Title On Panel | Display the slider name on the panel |
| Hint | Tooltip text |
