Clipper

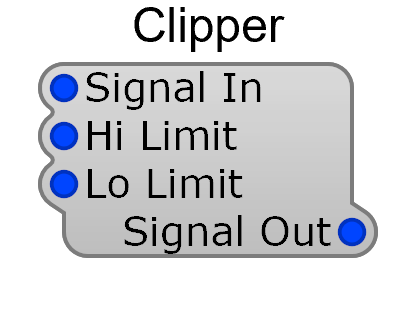

The Clipper restricts the input signal to a voltage range between two limits. Voltages above the high limit or below the low limit are clamped.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Signal In | Audio | Audio input |
| Hi Limit | Audio | Upper voltage limit |
| Lo Limit | Audio | Lower voltage limit |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Signal Out | Audio | Clipped output |
- Hard clipping distortion: Set tight limits on an audio signal
- Limiting control voltages: Prevent CV signals from exceeding a safe range
