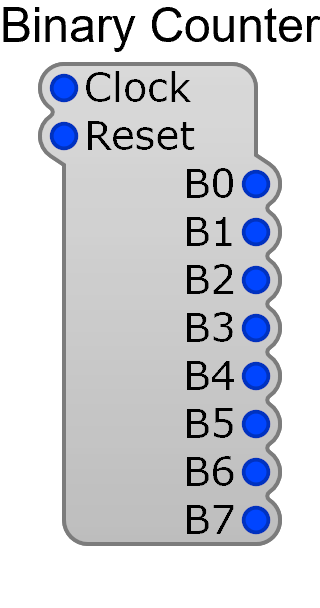

Binary Counter
The Binary Counter increments a binary count on each clock pulse, providing 8 individual binary outputs.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Clock | Audio | Advances count on rising edge |
| Reset | Audio | Resets count to zero |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| B0–B7 | Audio | 8 binary outputs (0V or 5V) |
