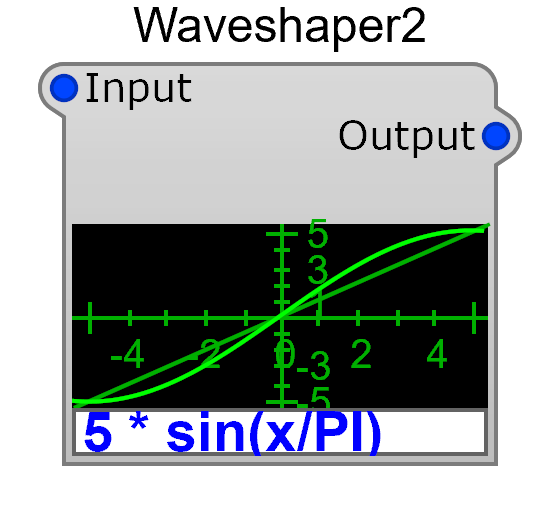

Waveshaper (Formula)
The Waveshaper (Formula) applies a mathematical formula as a transfer function. The input signal value is substituted into the formula, and the result becomes the output. Internally, the formula is computed as a 512-point lookup table for efficiency.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Signal In | Audio | Audio input (range: -5.0 to +5.0V) |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Signal Out | Audio | Transformed audio output |
Parameters
Section titled “Parameters”| Property | Description |
|---|---|
| Ignore Program Change | Prevent MIDI program changes from altering the formula |
| Hint | Tooltip text |
Supported Functions
Section titled “Supported Functions”*, /, +, -, ^ (power), sin, cos, tan, asin, acos, atan, sinh, cosh, tanh, exp, log, log10, sqrt, floor, ceil, abs, hypot, deg, rad, sgn, min, max
The input variable is x (representing the input voltage).
Usage Notes
Section titled “Usage Notes”- Input range is -5.0 to +5.0V; values outside this range are clamped
- Leading negative signs require a
0-prefix (e.g.,0-2^xinstead of-2^x) - Example formulas:
5*sin(x)— Sine waveshapingx^3— Cubic soft clipping5*sgn(x)— Hard clipping
