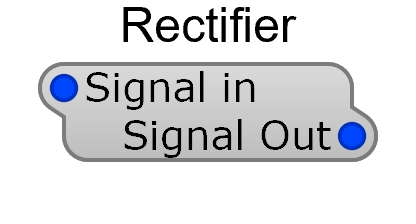

Rectifier
The Rectifier performs half-wave rectification, converting negative voltages to positive. This adds harmonics to audio signals and can be used as part of envelope detection circuits.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Signal In | Audio | Audio input |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Signal Out | Audio | Rectified output (all positive) |
