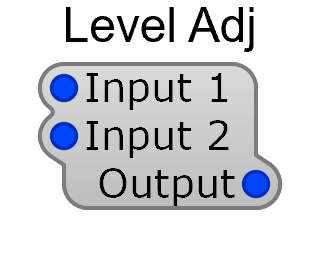

Level Adj
The Level Adj multiplies two input signals with normalization, similar to the Ring Modulator. Useful for ring modulation, amplitude modulation, and signal scaling.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Input 1 | Audio | First signal |
| Input 2 | Audio | Second signal |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Output | Audio | Multiplied and normalized output |
Usage Notes
Section titled “Usage Notes”For amplitude envelopes (shaping note volume), use the VCA instead — it’s optimized for sleep mode detection and provides better CPU efficiency.
