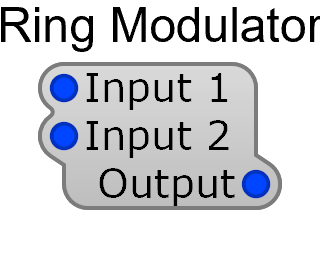

The Ring Modulator multiplies two input signals and normalizes the result. This produces sum and difference frequencies, creating metallic, bell-like, and inharmonic timbres.
| Pin | Type | Description |
|---|
| Input 1 | Audio | First signal |
| Input 2 | Audio | Second signal |
| Pin | Type | Description |
|---|
| Output | Audio | Modulated output (normalized: 5V × 2V = 1V) |
- Ring modulation with two audio-rate signals creates metallic, clangorous timbres
- With one audio signal and one LFO, it produces tremolo effects
- The normalization means two 10V signals produce a 10V output (not 100V)
