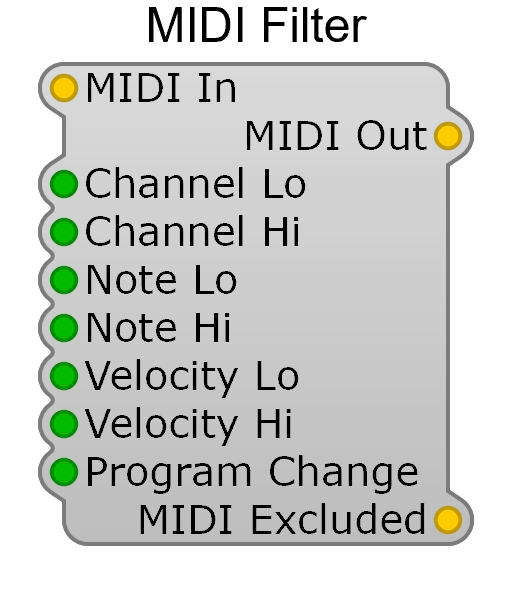

The MIDI Filter selectively passes MIDI data based on channel, note range, and velocity range. Useful for keyboard splits, velocity switching, and channel routing.
| Pin | Type | Description |
|---|
| MIDI In | MIDI | MIDI data to filter |
| Channel Lo/Hi | Control | MIDI channel range (1–16) |
| Note Lo/Hi | Control | Note number range (0–127) |
| Velocity Lo/Hi | Control | Velocity range (0–127) |
| Pin | Type | Description |
|---|
| MIDI Out | MIDI | Filtered MIDI data |
- Keyboard split: Set Note Lo/Hi to divide the keyboard between two synth patches
- Velocity switching: Route soft notes to one sound and hard notes to another
- Channel filtering: Isolate specific MIDI channels
