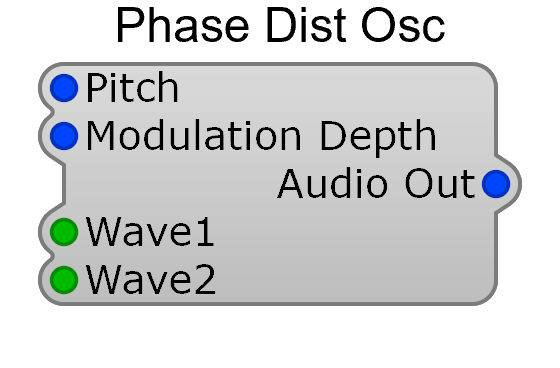

Phase Distortion Oscillator
The Phase Distortion Oscillator generates complex tones by modulating the playback phase of a waveform, producing filter-like timbral sweeps without a separate filter module.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Pitch | Audio | Note pitch (1V/octave, 5V = 440 Hz) |
| Modulation Depth | Audio | Amount of phase distortion (0–10V = 0–100%) |
| Wave1 | List | First waveform shape |
| Wave2 | List | Second waveform shape |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Audio Out | Audio | Phase-distorted audio output |
Parameters
Section titled “Parameters”| Property | Description |
|---|---|
| Freq Scale | Pitch input scaling: 1V/Octave or 1V/kHz |
At zero modulation depth, the output is a pure sine wave. Increasing modulation adds harmonics progressively. Modulate the depth with an ADSR envelope for time-varying timbres similar to a filter sweep.
The module is sensitive to sudden modulation changes — filter abrupt control signals to avoid clicks.
See the Phase Distortion Synthesis guide for detailed techniques.
