SV Filter (State Variable)

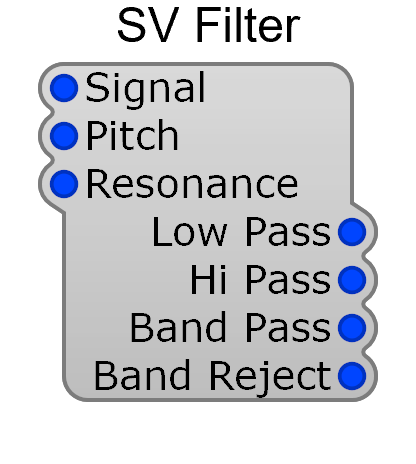

The SV Filter (State Variable Filter) is a versatile 2-pole filter providing four simultaneous outputs. It offers 12 dB/octave rolloff for low-pass and high-pass, and 6 dB/octave for band-pass and band-reject modes.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Signal | Audio | Audio input to filter |
| Pitch | Audio | Cutoff frequency (1V/octave, 5V = 440 Hz) |
| Resonance | Audio | Resonance / Q amount (0–10V) |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Low Pass | Audio | Low-pass filtered output (12 dB/oct) |
| High Pass | Audio | High-pass filtered output (12 dB/oct) |
| Band Pass | Audio | Band-pass filtered output (6 dB/oct) |
| Band Reject | Audio | Band-reject / notch output (6 dB/oct) |
Parameters
Section titled “Parameters”| Property | Description |
|---|---|
| Freq Scale | Pitch input scaling: 1V/Octave or 1V/kHz |
All four outputs are available simultaneously — you can use different filter types from the same module without duplicating it. Connect the desired output to the next module in your signal chain.
For a heavier, more “analog” filter sound, see the Moog Filter.
