Step Counter

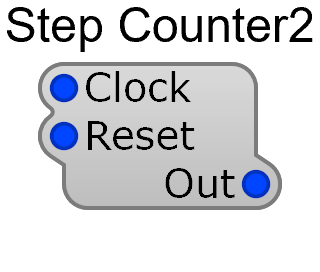

The Step Counter activates each output in sequence on every clock pulse. Only one output is active (5V) at a time.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Clock | Audio | Advances to next step on rising edge |
| Reset | Audio | Returns to first step |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Out 1–N | Audio | Sequential step outputs (configurable count) |
Usage Notes
Section titled “Usage Notes”For reliable step reset, use a Feedback Delay module in the reset path to avoid timing issues.
