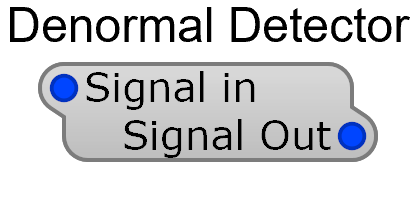

Denormal Detector
The Denormal Detector indicates whether denormal numbers are present in the input signal. Connect its output to an LED Indicator for visual detection.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Signal In | Audio | Signal to analyze |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Signal Out | Audio | Detection output (high when denormals present) |
Use this as a diagnostic tool to find modules that produce denormals, then apply a Denormal Cleaner at the source.
