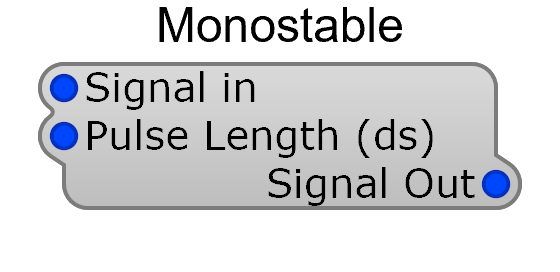

Monostable
The Monostable produces a single pulse of a fixed duration each time it is triggered. Also known as a “one-shot.”
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Signal In | Audio | Trigger input (fires on rising edge) |
| Pulse Length | Audio | Duration of output pulse (10V = 1 second) |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Signal Out | Audio | Pulse output (0V or 5V) |
