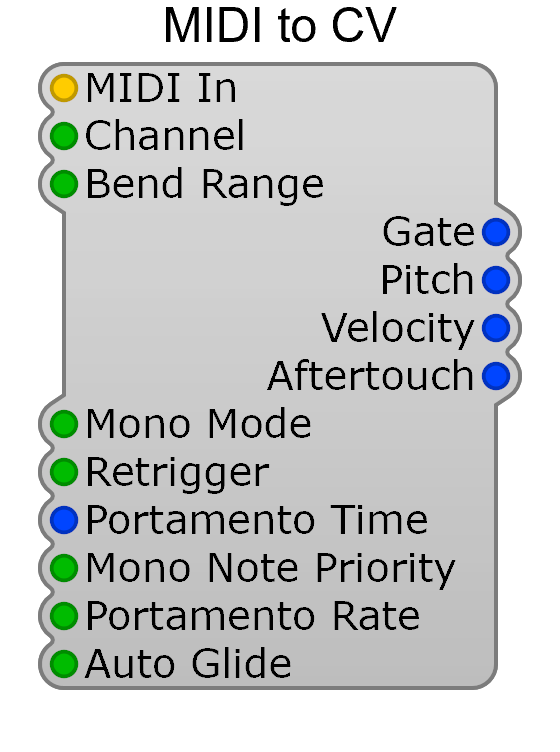

MIDI to CV
The MIDI to CV module converts incoming MIDI note data into control voltages (CV) and gate signals, forming the bridge between MIDI input and the analog-style modular synthesis engine.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| MIDI In | MIDI | MIDI data input |
| Channel | Control | MIDI channel to respond to (0 = all channels) |
| Bend Range | Control | Pitch bend range in semitones (0–12) |
| Portamento Time | Control | Glide time between notes |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Gate | Audio | Note on/off (5V while key held, 0V on release) |
| Pitch | Audio | Note pitch (1V/octave, 5V = A440) |
| Velocity | Audio | Note velocity |
| Aftertouch | Audio | Channel aftertouch |
This is an essential module for any playable synthesizer. Place it inside the container that holds your voice modules — it controls polyphonic voice allocation.
See the Polyphony guide for details on voice management.
