Keyboard

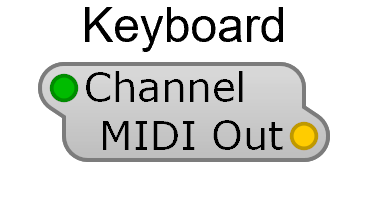

The Keyboard module provides an on-screen piano keyboard that can be played with the mouse or computer keyboard.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Channel | Control | MIDI channel to send on |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| MIDI Out | MIDI | MIDI note data |
Computer Keyboard Mapping
Section titled “Computer Keyboard Mapping”- Q row = Middle C octave
- Z row = Two octaves below middle C
- T button = Toggle mode (keys stay held until clicked again)
Usage Notes
Section titled “Usage Notes”- The keyboard is resizable
- Clicking the keyboard starts SynthEdit playback if it isn’t already running
