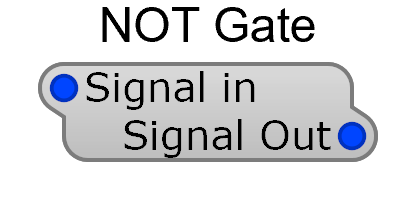

NOT Gate
The NOT Gate inverts the logic state of the input. If the input is high (above 3.33V), the output is 0V. If the input is low (below 1.66V), the output is 5V.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Signal In | Audio | Logic input |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Signal Out | Audio | Inverted logic output |
