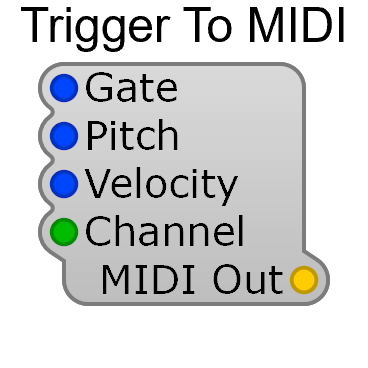

Trigger to MIDI
The Trigger to MIDI module converts gate and pitch control voltages back into MIDI note-on and note-off messages.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Gate | Audio | Triggers note-on (rising edge) and note-off (falling edge) |
| Pitch | Audio | Sets the MIDI note number |
| Velocity | Audio | Note velocity (0–10V = 0–127) |
| Channel | Control | MIDI channel to send on |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| MIDI Out | MIDI | Generated MIDI messages |
Parameters
Section titled “Parameters”| Property | Description |
|---|---|
| Freq Scale | Pitch input scaling |
