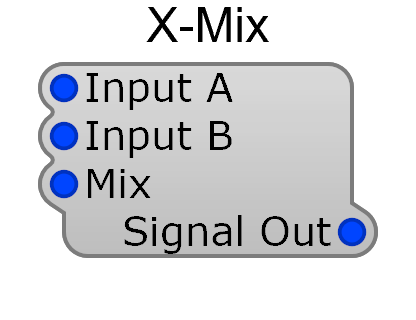

X-Mix (Crossfade)
The X-Mix (Cross Mix) smoothly blends between two input signals.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Input A | Audio | First signal |
| Input B | Audio | Second signal |
| Mix | Audio | Crossfade position (+5V = 100% A, -5V = 100% B) |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Signal Out | Audio | Blended output |
Parameters
Section titled “Parameters”| Property | Description |
|---|---|
| Fade Law | Crossfade curve type |
