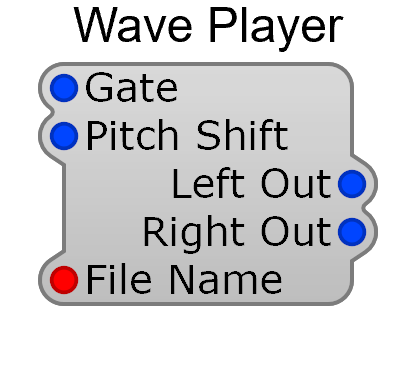

The Wave Player streams WAV files from disk, supporting files of any size. It can play back samples with pitch shifting and supports loop points defined in external wave editors.
| Pin | Type | Description |
|---|
| Gate | Audio | Triggers playback (> 0V = play) |
| Pitch Shift | Audio | Pitch offset (1V/octave) |
| File Name | Text | Path to the WAV file |
| Pin | Type | Description |
|---|
| Left Out | Audio | Left channel output |
| Right Out | Audio | Right channel output |
- Files are streamed from disk, so there’s no size limit
- The module assumes all samples are tuned to 440 Hz (Middle A). Add a pitch offset if your sample is at a different pitch.
- Loop points set in a wave editor (e.g., loop start/end markers in the WAV file) are respected
- Limited to approximately 50–100 Wave Player modules per patch due to Windows file handle limits
