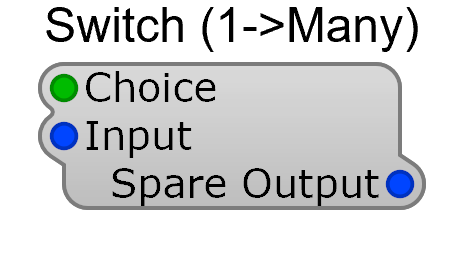

Switch (1 to Many)
The Switch (1 to Many) routes a single input signal to one of several outputs based on a selection voltage.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Choice | Control | Selects which output receives the signal |
| Input | Audio | Signal to route |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Output 1–N | Audio | Multiple outputs (new outputs auto-created when connected) |
New output pins are automatically created as you connect to them. Only the selected output receives the input signal; all others output silence.
