Pan

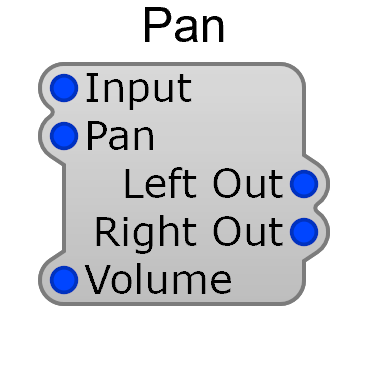

The Pan module distributes a mono signal between left and right outputs with adjustable volume.
Inputs
Section titled “Inputs”| Pin | Type | Description |
|---|---|---|
| Input | Audio | Mono audio input |
| Pan | Audio | Pan position (-5V = full left, 0V = center, +5V = full right) |
| Volume | Audio | Output volume (10V = original level) |
Outputs
Section titled “Outputs”| Pin | Type | Description |
|---|---|---|
| Left Out | Audio | Left channel output |
| Right Out | Audio | Right channel output |
Parameters
Section titled “Parameters”| Property | Description |
|---|---|
| Fade Law | Panning curve type |
