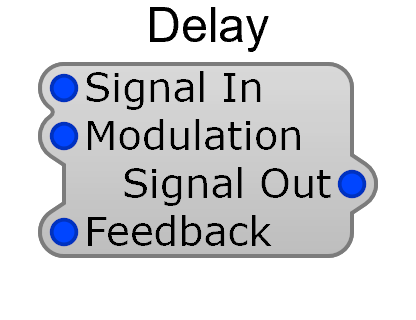

The Delay module creates delay and echo effects with adjustable delay time, feedback, and optional time modulation for chorus and flanger effects.
| Pin | Type | Description |
|---|
| Signal In | Audio | Audio input |
| Modulation | Audio | Delay time modulation (0–10V sweeps from 0 to max delay time) |
| Feedback | Audio | Feedback amount — portion of output fed back into input |
| Pin | Type | Description |
|---|
| Signal Out | Audio | Delayed audio output |
| Property | Description |
|---|
| Delay Time | Maximum delay time (up to 10 seconds) |
| Interpolate Output | Smooths output when modulating delay time (reduces clicks) |
- For simple echo: set a fixed delay time and adjust feedback for the number of repeats
- For chorus: use a slow LFO on the Modulation input with a short delay time (10–30 ms)
- For flanger: use a slow LFO on the Modulation input with a very short delay time (1–10 ms) and moderate feedback
- The Feedback input handles internal feedback — no need for a Feedback Delay module
